Ventilation kit 200mm 1040 m3/h | power and temperature control

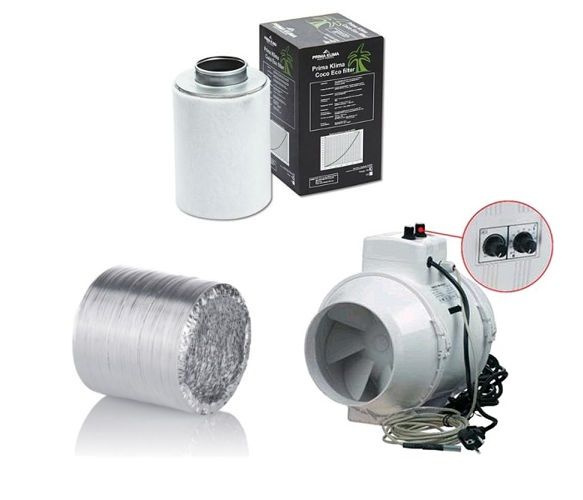

  • Complete ventilation kit
Flange (mm): 200 mm
319,27 €
/ piece
259,57 €
/ piece
You save 8.13% (28.26) when buying in a set.

In a set

The fan ensures constant air exchange, which translates into a reduction in temperature. Together with the carbon filter (available in our assortment) ensures that you get rid of any unwanted odors.

Specification





Fan

Channel connection/diameter: 200mm (8")

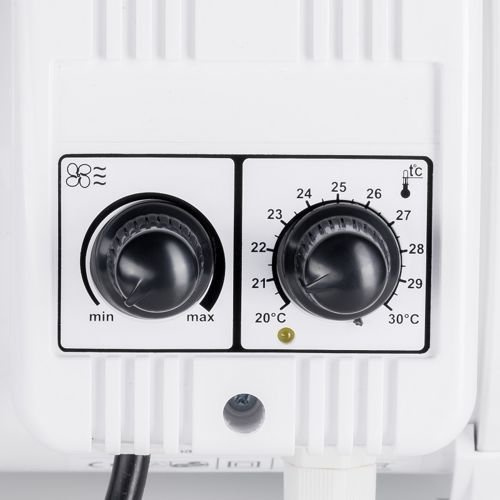

The fan has full power control

In addition, the fan has a temperature sensor on a cable length of 4m

Bandwidth

min: 830 m3/h

max: 1040 m3/h

Rpm

min: 1915

max: 2380

Power

min: 76 at

max: 108 in

Noise

min: 45 dB

max: 52 dB

Operating temperature max:60°C

Bezp. class: IPX4

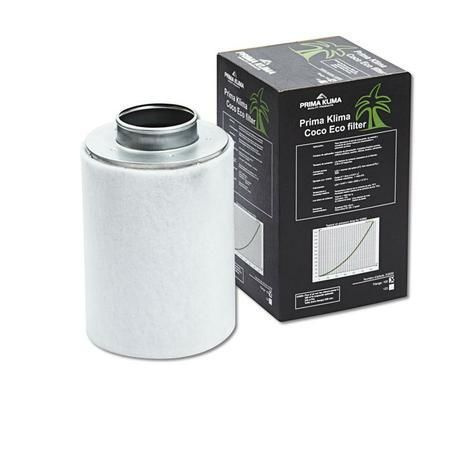

Carbon filter

- filtering optimally 1000m3/h / max 1300m3/h

- dimensions: h 750mm, connection fi 200mm

- contains activated carbon CT 55 pre-filter

- maximum room volume 20m3

- possibility of self-exchange of activated carbon

- minimum lifespan 12 months

- when regenerating the filter, it is recommended to replace the activated carbon and the pre-filter at the same time

-easy to install and super-reliable,
Inside each filter, activated carbon effectively removes any odors from the room, allowing fans to work more efficiently.

Ventilation duct

- connection diameter 200mm

- length 3M

Gallery



Tech specs:
power (W):
120 w
Flange (mm):
200 mm
Airflow regulation:
yes
temperature regulation:
yes
