Vents-group TTUN PRO 200mm fan with power and temperature control 1040m3/h

  • High-performance duct fan with 200mm connection diameter, the fan has multi-level rotation control depending on the set temperature
Producer: Vents-Group
Flange (mm): 200 mm
179,82 €
/ piece
146,20 €
/ piece

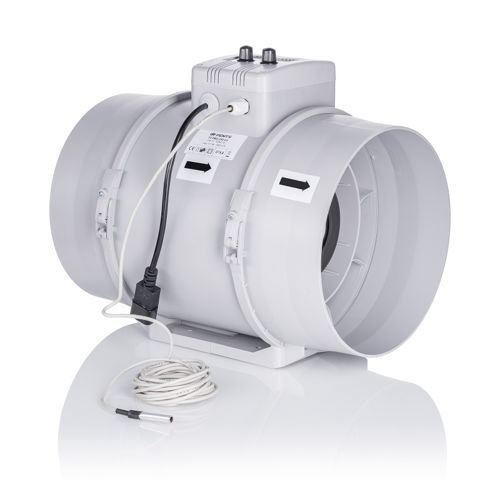

Vents-GROUP Axial duct fans from the TTUN series are used in supply and exhaust ventilation systems. Thanks to the use of abs plastic housing, fans do not corrode, an additional advantage of these fans is fully adjustable power, which depends on the set temperature. The fans are suitable for air transport up to 60°C.

Specification





Channel connection/diameter: 200mm (8")

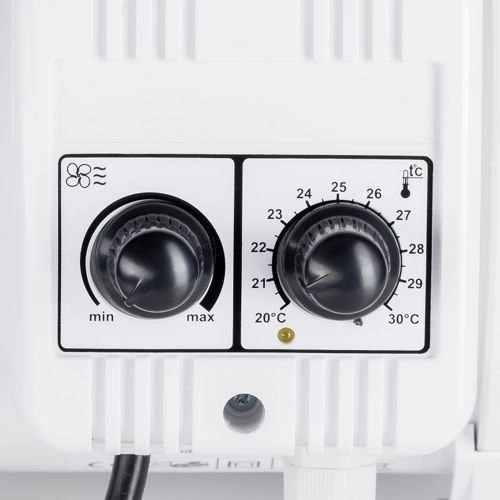

The fan has full power and temperature control

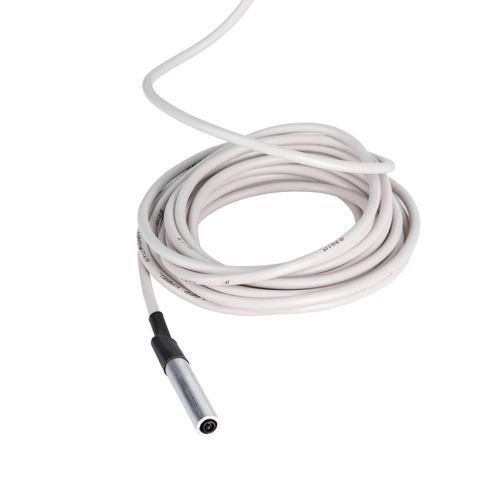

The fan has a temperature sensor on a cable length of 4m

Temperature control range: 20-30 degrees

Bandwidth

min: 830 m3/h

max: 1040 m3/h

Rpm

min: 1915

max: 2380

Power

min: 76 at

max: 108 in

Noise

min: 45 dB

max: 52 dB

Operating temperature max:60°C

Free class: IPX4

Gallery



Tech specs:
power (W):
108
Loudness (dB):
52
Flange (mm):
200 mm
Airflow regulation:
yes
temperature regulation:
yes
Maximum performance:
1040 m3/h
Real power consumption (W):
110
