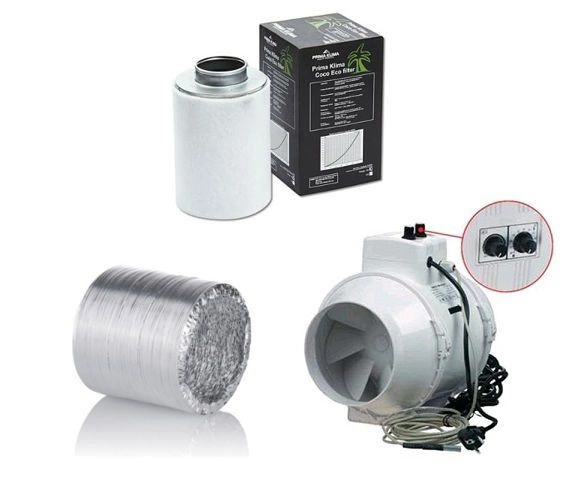

Ventilation kit 100mm 187 m3/h | power regulation

  • Complete ventilation kit
Producer: unidentified
Flange (mm): 100
141,09 €
/ piece
114,71 €
/ piece
You save 10.00% (15.68), when buying in a set.

In a set

The fan ensures constant air exchange, which translates into a reduction in temperature. Together with the carbon filter (available in our assortment) ensures that you get rid of any unwanted odors.

Specification





Fan

Channel connection/diameter: 100mm (4")

The fan has full power control

In addition, the fan has a temperature sensor on a cable length of 4m

Bandwidth

min: 145 m3/h

max: 187 m3/h

Power

min: 21 in

max: 33 w

Rpm

min: 2180

max: 2385

Noise

min: 27 dB

max: 36 dB

Operating temperature max:60°C

Bezp. class: IPX4


Carbon filter

- filtering optimally 160m3/h / max 240 m3/h

- dimensions: h 180mm, connection fi 100mm

- contains activated carbon CT 55 pre-filter

- maximum room volume 20m3

- possibility of self-exchange of activated carbon

- minimum lifespan 12 months

Ventilation duct

- connection diameter 100mm

- length 1M

Gallery



Tech specs:
power (W):
33
Flange (mm):
100
Airflow regulation:
yes
temperature regulation:
yes
Maximum fan performance (m3 / h):
187
