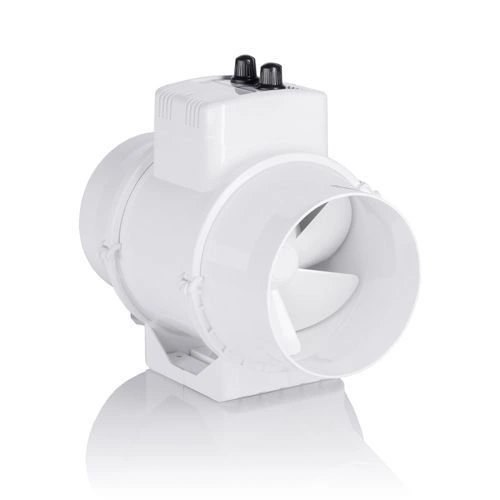

Vents-group TTUN 100mm fan with power and temperature control 187m3/h

  • Efficient duct fan with 100mm connection diameter, the fan has multi-level rotation control depending on the set temperature.
Producer: Vents-Group
Flange (mm): 100
85,17 €
/ piece
69,24 €
/ piece
Vents-GROUP Axial duct fans from the TTUN series are used in supply and exhaust ventilation systems. Thanks to the use of abs plastic housing, fans do not corrode, an additional advantage of these fans is fully adjustable power, which depends on the set temperature. The fans are suitable for air transport up to 60°C.

Specification





Channel connection/diameter: 100mm (4")

The fan has full power and temperature control

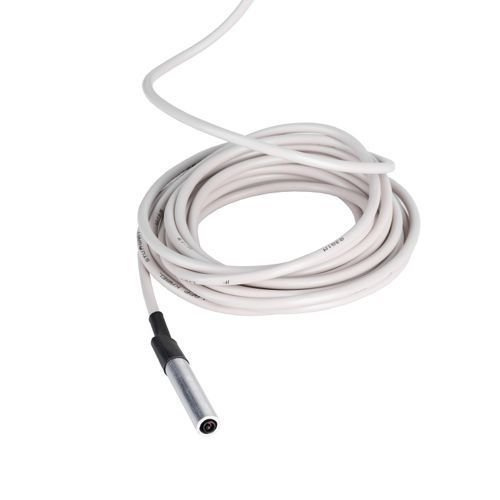

The fan has a temperature sensor on a cable length of 4m

Temperature control range: 20-30 degrees

Bandwidth

min: 145 m3/h

max: 187 m3/h

Power

min: 21 in

max: 33 w

Rpm

min: 2180

max: 2385

Noise

min: 27 dB

max: 36 dB

Operating temperature max:60°C

Free class: IPX4

Gallery



Tech specs:
Maximum fan performance (m3 / h):
187
power (W):
33
Loudness (dB):
36
Flange (mm):
100
Airflow regulation:
yes
temperature regulation:
yes
Real power consumption (W):
48
