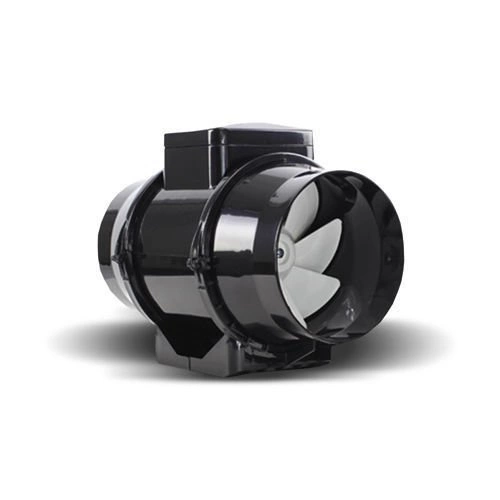

• Fan Mixed-Flo 150 EU-V 150mm / 520 m3/h

Fan Mixed-Flo 150 EU-V 150mm / 520 m3/h

  • Powerful Channel Fan from Black Orchid
Producer: Black Orchid
Flange (mm): 150 mm
89,22 €
/ piece
72,54 €
/ piece
MIXED-FLO fans are interesting because of the wide range of possibilities and high performance, the technology made provides a strong airflow and high air pressure. Fans are recommended as part of ventilation systems for various commercial and industrial facilities with high noise requirements, i.e. libraries, conference rooms, educational institutions, kindergartens, etc.

The Black Orchid MIXED-FLO fan includes a built-in speed control

Specification





-Connection/channel diameter: 150mm (6")

-Built-in speed control module

-Bandwidth:

first stage: 405m3/h,

second stage: 520 m3/h

-Power:

minimum: 30W

maximum: 60W

-Voltage [V/50HZ]: 1-230

-Ampere [A]

min: 0.17

max: 0.27

-RPM rotations:

min:1680

max:2460

-Maximum operating temperature: 0 - 55 °C

-For supply and exhaust ventilation

-For ventilation of large and medium-sized rooms

-Low noise level min. 33 dBA max. 44 dBA

-Motor with external rotor on ball bearings with built-in overload protection

-High-quality plastic housing

-Speed control via speed controller

-For horizontal and vertical installation

-Security standard: IPX4

-Strong, robust and economical

-Vibration-free operation

-Includes euro connection cable

-Color: black

Gallery



Tech specs:
Maximum performance:
520 m3/h
power (W):
60
Loudness (dB):
44
Flange (mm):
150 mm
Airflow regulation:
yes
temperature regulation:
no
Real power consumption (W):
62
