Milwaukee MP815 Dosing Pump – designed for the controlled dosing of liquids in applications such as hydroponic nutrient systems, aquariums etc.
The Milwaukee MP815 dosing pump is a precision device designed for the controlled dosing of liquids in applications such as hydroponic nutrient systems, aquariums, and various industrial or laboratory processes. This model provides adjustable flow and high pressure resistance, making it ideal wherever stable and repeatable liquid delivery is required.
The pump features a flow rate adjustable from 0.0 to 2.2 L/h (0–37 ml/min) and a maximum operating pressure of 2 bar. Its polypropylene (PP) housing ensures chemical resistance and durability, while the Santoprene peristaltic tube provides excellent flexibility and resistance to chemicals.

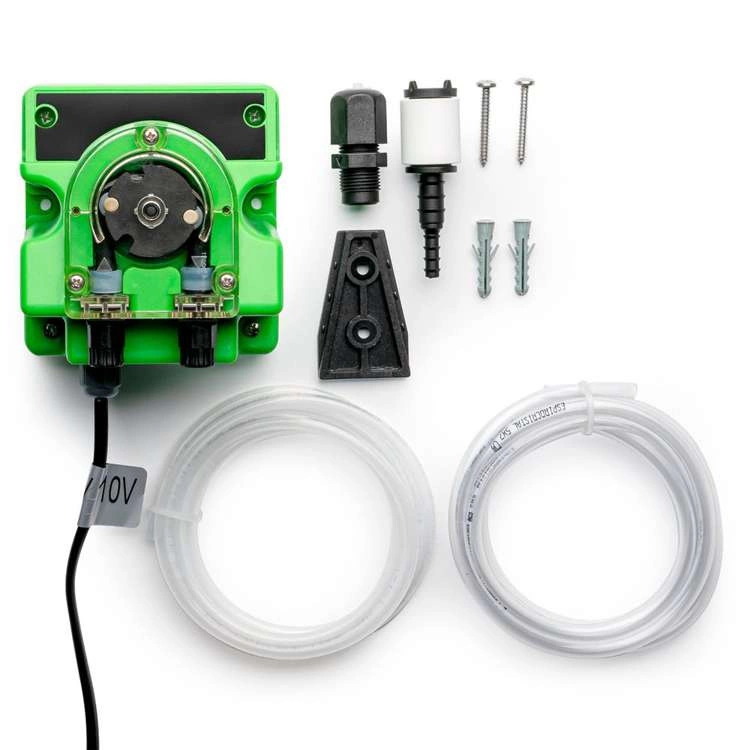

The complete kit includes: two 1.6 m transparent PVC tubes, a discharge fitting, a suction fitting with ceramic weight and filter, as well as a wall mounting bracket with screws and anchors.
Technical Specifications
| Parameter | Value |
|---|---|
| Flow rate range | 0.0 – 2.2 L/h (0–37 ml/min) |
| Maximum operating pressure | 2 bar |
| Housing material | Polypropylene (PP) |
| Peristaltic tube material | Santoprene |
| Power supply | 240 V AC ± 10% |
| Accessories included | 2× PVC tube (1.6 m), discharge fitting, suction fitting with ceramic weight and filter, wall bracket with screws and anchors |

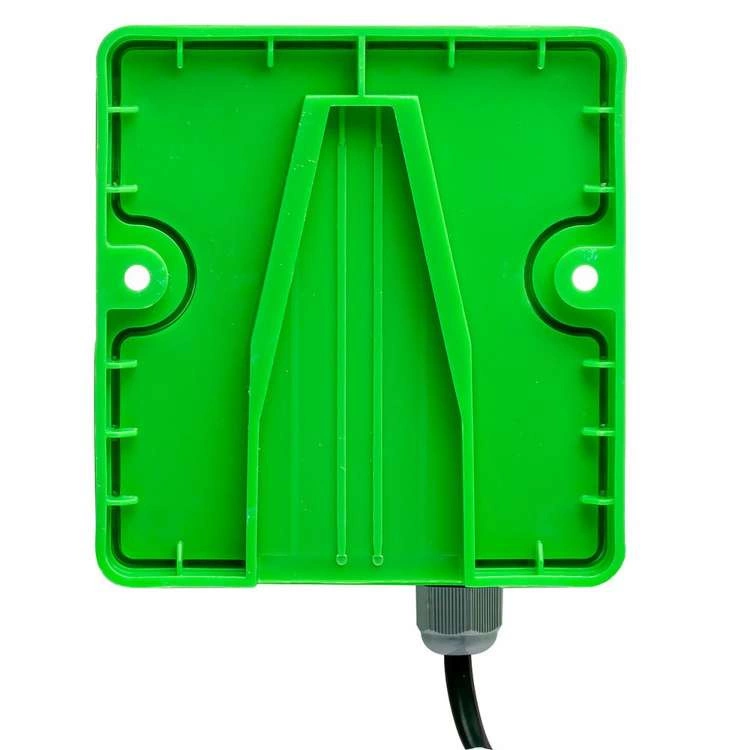

| Mounting type | Vertical wall or surface mounting (bracket included) |
Applications and Use
The MP815 pump is designed for installations requiring precise dosing of small liquid quantities—such as adding pH adjusters, liquid fertilizers, or dosing in aquariums. Thanks to its adjustable flow rate and robust construction, it performs well in hydroponic systems, laboratories, and industrial setups.
For optimal operation, the pump should be installed in a vertical position above the liquid reservoir to ensure proper drainage and prevent backflow.
