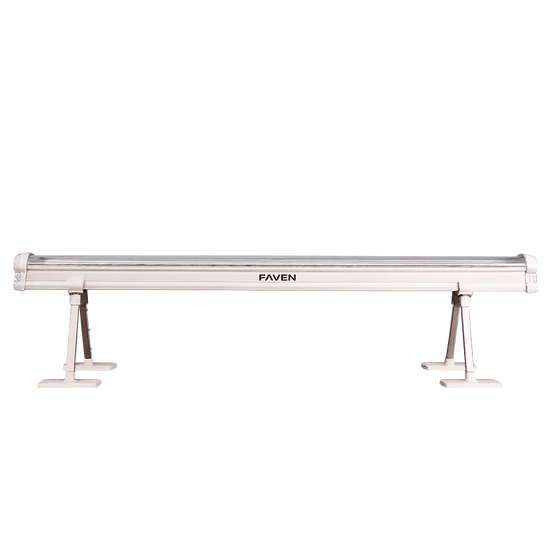

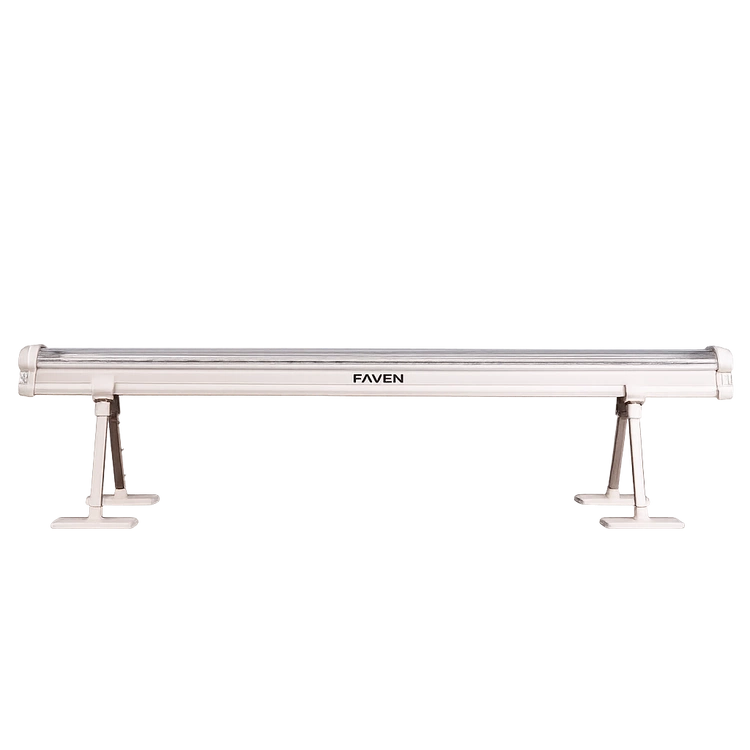

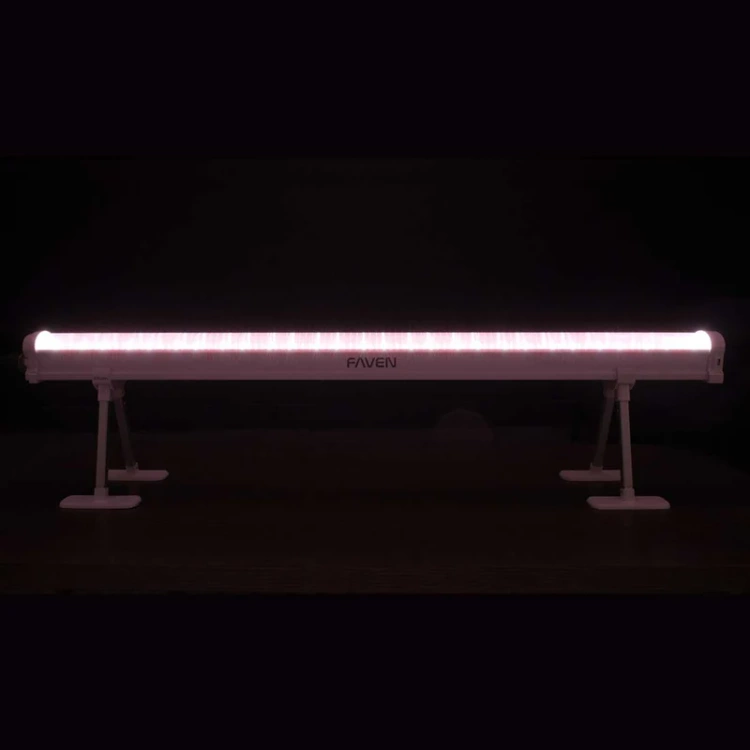

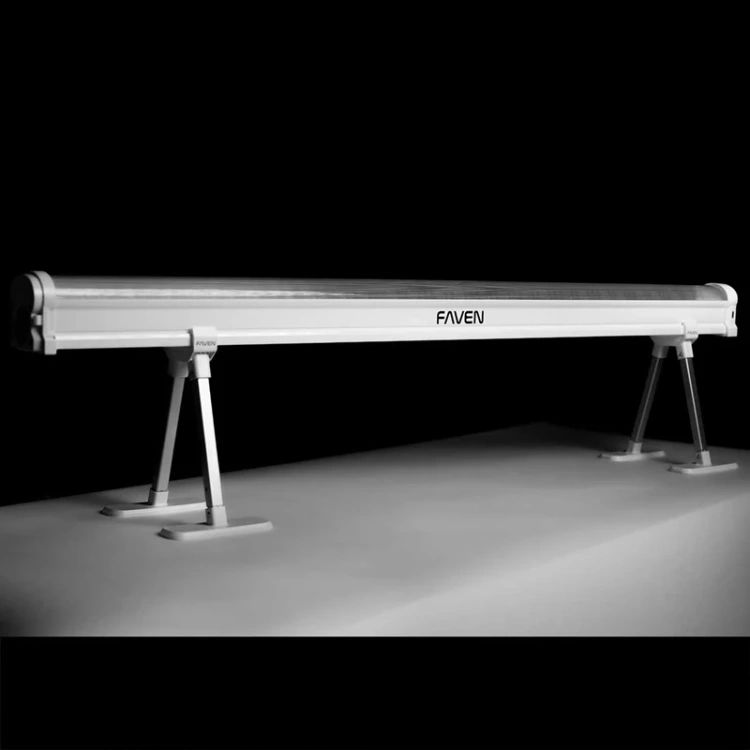

Faven Under Canopy R8 120W 2,9 µmol/J - supplemental LED bar designed specifically to illuminate the lower canopy of plants with red light, 1 pcs.

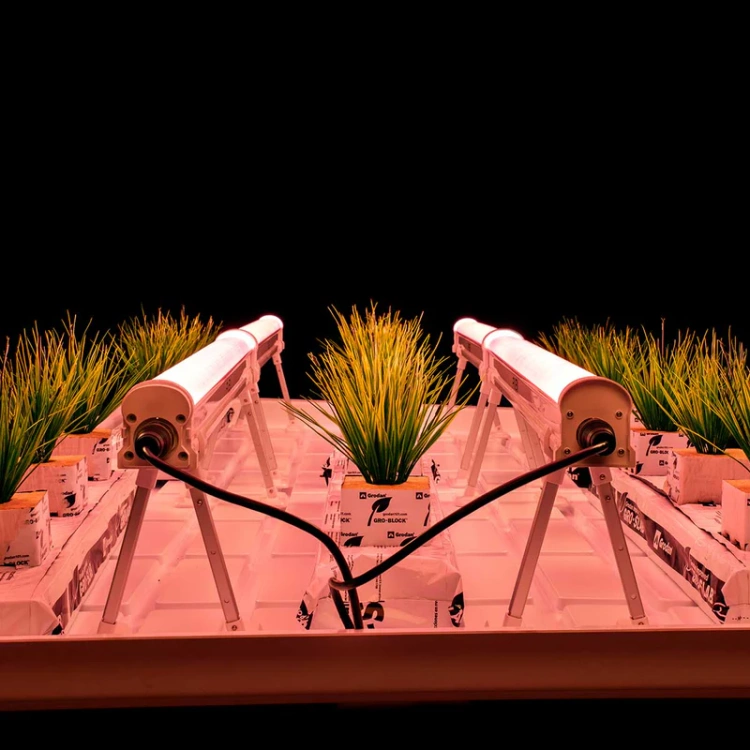

The Faven Under Canopy R8 is a professional 120 W LED bar designed specifically to illuminate the lower canopy of plants. The R8 version features a high proportion of red light (approx. 80%), which enhances photosynthesis, promotes flower development, and improves overall crop quality. With its compact design, waterproof housing, and dimming capability, it is a reliable solution for professional cultivation environments.
Key Features
High light efficiency: up to 2.9 µmol/J
Photon output: up to approx. 340 µmol/s
Power: 120 W, dimmable (down to ~35–40% of full power)
R8 spectrum – 80% red light, optimized for flowering and fruiting phases
IP66 rating – fully resistant to water and dust
Integrated internal driver
Soft-Start function for smooth ignition

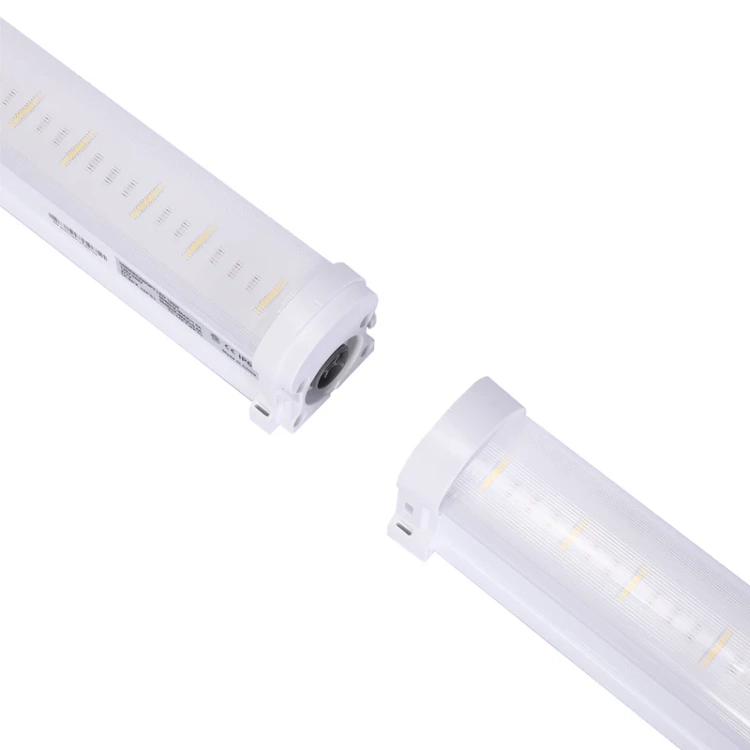

Daisy-chain connection system (up to 20 units)
LED lifetime > 50,000 hours
5-year manufacturer’s warranty
Technical Specifications
| Parameter | Value |
|---|---|
| Model | Faven Under Canopy R8 |
| Rated Power | 120 W |
| Efficacy (PPE) | up to 2.9 µmol/J |
| PPF Output | approx. 340 µmol/s |
| Dimensions | 46" (116 cm) × 2.9" (7.4 cm) × 3.3" (8.4 cm) |
| Weight | approx. 2.6 kg |
| Protection Rating | IP66 |
| Input Voltage | 120 V / 240 V / 277 V |
| Input Current | 1.0 A (120 V) / 0.5 A (240 V) / 0.43 A (277 V) |
| Control | Manual & 0–10 V |
| Spectrum | R8 (approx. 80% red) |
| Lifetime | > 50,000 hours |
| Warranty | 5 years |
