Milwaukee MI5560 – Waterproof pH, EC, TDS and Temperature Meter Kit

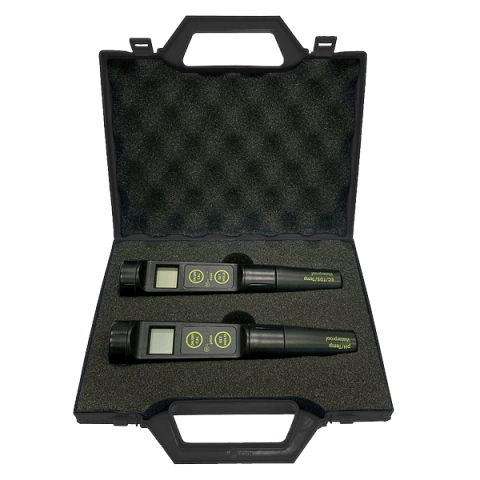

The MI5560 measurement kit consists of two portable meters: a pH meter (model PH55) and a conductivity/TDS meter (model EC60). The entire set is supplied in a carrying case, ensuring convenient transport and protection of the instruments. The kit is designed for water quality measurements in hydroponics, aquariums, plant cultivation, as well as other laboratory and industrial applications.
Key advantages of the kit:
Both meters are waterproof and compact (pocket-size format).
Automatic temperature compensation ensures measurement accuracy.

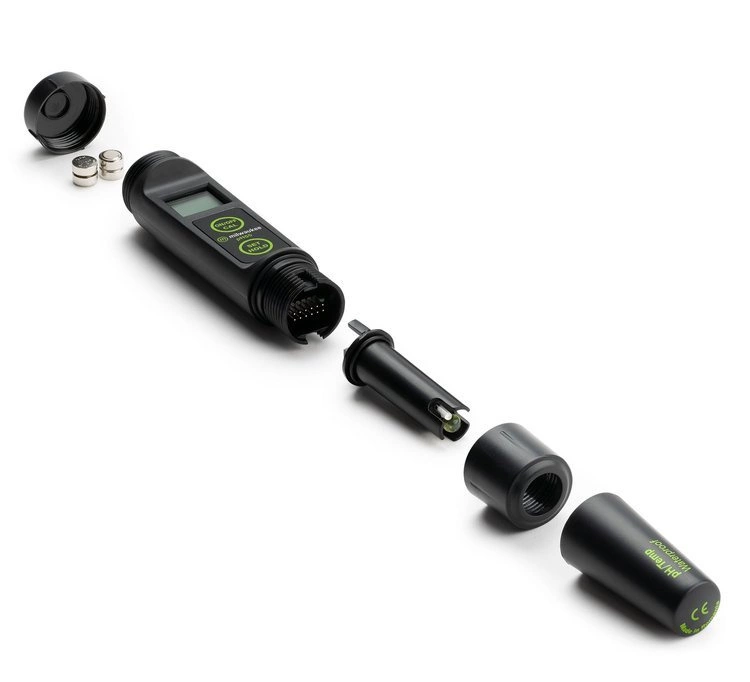

Replaceable electrodes allow servicing and maintaining high precision.
Easy and fast calibration (automatic, one- or two-point).
Automatic shut-off saves battery power.
Kit Contents

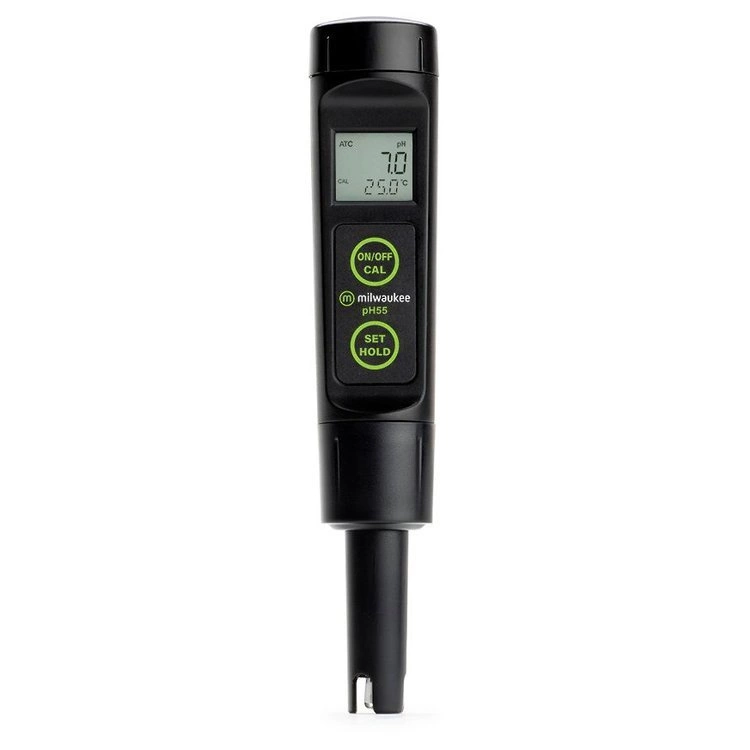

PH55 pH meter

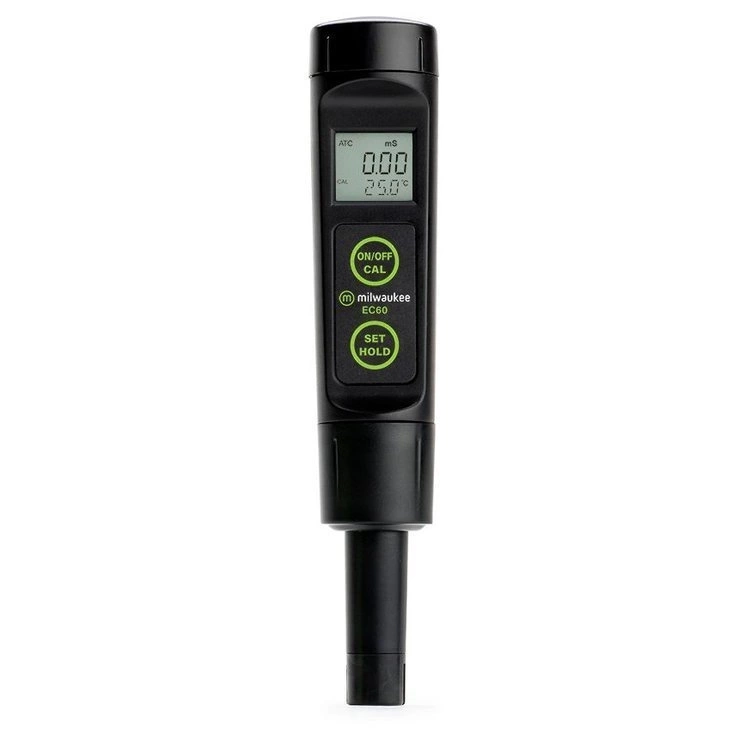

EC60 conductivity meter (conductivity / TDS / temperature)
Carrying case
Calibration solutions (pH 4.01, pH 7.01, EC 12.88)
Protective caps with storage solution for electrodes
Technical Specifications
| Parameter | PH55 (pH meter) | EC60 (conductivity / TDS meter) |
|---|---|---|
| pH measurement range | −2.0 to 16.0 pH | – |
| pH resolution | 0.1 pH | – |
| pH accuracy | ±0.1 pH at 25 °C | – |
| Temperature range | −5.0 to 60.0 °C | 0.0 to 60.0 °C |
| Temperature resolution | 0.1 °C | 0.1 °C |
| Temperature accuracy | ±0.5 °C | ±0.5 °C |
| Conductivity (EC) range | – | up to 20.00 mS/cm |
| EC resolution | – | 0.01 mS/cm |
| TDS range | – | up to 10.00 ppt |
| TDS resolution | – | 0.01 ppt |
| Temperature compensation | automatic (ATC) | automatic, adjustable ß coefficient |
| Calibration | automatic, 1- or 2-point (pH 4 and 7 buffers) | automatic, 1-point (EC 12.88 buffer) |
| Electrodes / probes | replaceable electrode MI56P | replaceable probe MI59P |
| Waterproof rating | water-resistant housing | water-resistant housing |
| Auto shut-off | yes, after 8 minutes of inactivity | yes, after 8 minutes of inactivity |
| Power supply | 4 × 1.5 V (LR44/A76) | 4 × 1.5 V (LR44/A76) |
| Battery life | approx. 300 hours | approx. 100 hours |
| Dimensions | length approx. 200 mm, diameter 38 mm | length approx. 200 mm, diameter 38 mm |
| Weight | approx. 100 g | approx. 100 g |
