TROLMASTER HYDRO-X PLUS HCS-3 - climate controller

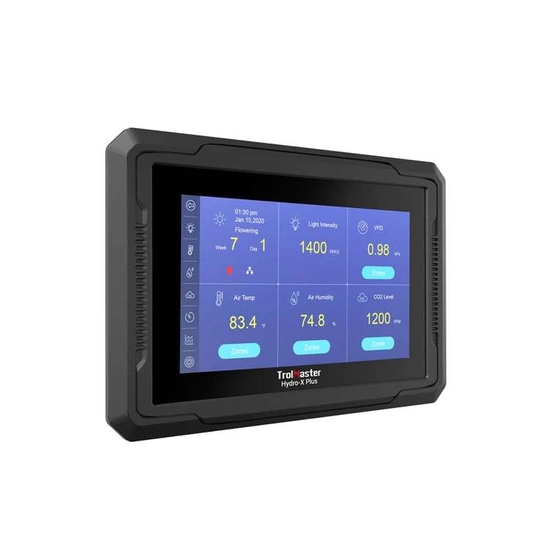

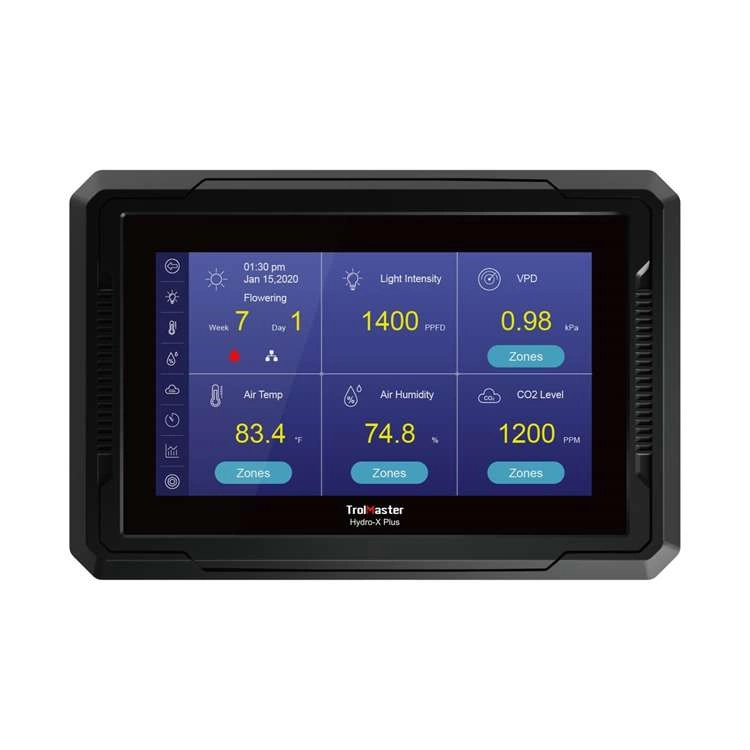

Trolmaster HCS-3 Hydro-X PLUS

The Hydro-X Plus HCS-3 Controller is a professional single-zone environmental control system that can control your entire growing space. It has a 7-inch 800x480 LED monitor and can control an unlimited number of lights, 8 temperature devices, 8 humidity devices, 4 CO2 devices and 12 programmable timer devices (up to 50 schedules can be created). With incredible flexibility and increased product capacity, anyone can now easily customize their own grow room control system for maximum yields. Having multiple control modules also provides the user with the ability to create multiple "stages" of temperature and humidity controls, which will provide a more stable environment.

The HCS-3 is equipped with the MBS-PRO 4-in-1 sensor to measure temperature, humidity, CO2 ppm and presence of light. Lighting control has never been easier or more efficient. An optional MBS-PAR light sensor can be added to the system. It will automatically adjust the light intensity to precisely provide the exact amount of lighting for optimal plant growth. Hydro-X Plus can also track DLI levels. Having 2 separate lighting control channels allows the user to create multiple lighting patterns (and dimming sequences) based on his individual preferences.

In addition to controlling, if the HCS-3 detects a problem, a warning message (notification) will be sent to your smartphone. Up to 10 smoke detectors and 10 water leakage detectors can be connected to the HCS-3, which will warn in the event of ignition or water flooding. The HCS-3 also offers many advanced features to control your entire grow room or greenhouse, such as sunrise/sunset simulation, DLI control, overheat protection, Spectrum lighting control & Group and many more.

.

Trolmaster HCS-3 Hydro-X Plus key features:
touch screen 7 inch,
easy to use,
application availability for smartphones,
Alarm function,
data logging .
Trolmaster HCS-3 Hydro-X PLUS includes:
1x HCS-3 Hydro-X PLUS device,
1x MBS-PRO sensor,
1x wall mount,
1x power adapter
< span style="font-size: 12pt;">1x RJ12 cable
Technical Specification:
input voltage: 100 ~ 240VAC, 50 / 60Hz,
maximum output voltage - current: 24 V DC / 0.5 A.,
light intensity range 0-2000PPFD,
temperature range: 4-38.0 °C,
humidity range: 0-99% RH,
humidity accuracy: ±5%,
< span style="font-size: 12pt;">CO2 range: 300-2500 PPM,
CO2 accuracy: ± 5% 30 PPM,
working environment: temperature 0-49 ° C, humidity = 90%.
