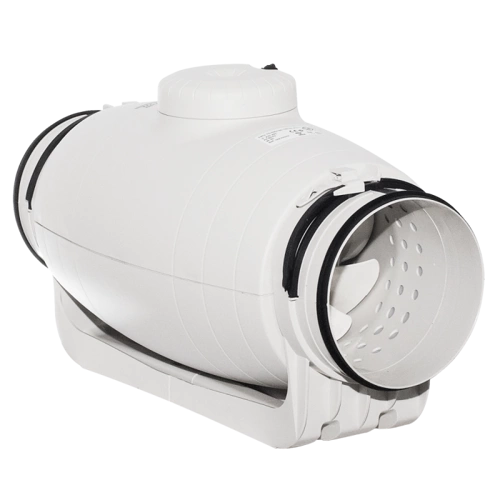

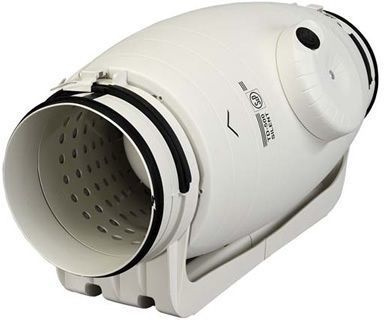

Soler & Palau fans are famous for very high quality and quiet operation. The TD SILENT 800/200 model is characterized by very quiet operation - even 21db and high efficiency - up to 910m3 / h. The fan can be set to max or min power - depending on the cable connection. The fan can operate vertically or horizontally.
The silent operation of the fan is ensured by the use of an innovative solution in the "Silent-S & P" technology - ie aerodynamic interior geometry, engine anti-vibration mountings, and an integrated set of internal silencers that ensure low noise and vibration levels.
Fans are recommended as an element of ventilation systems for various commercial and industrial facilities with high requirements regarding the noise level, i.e. libraries, conference rooms, educational institutions, kindergartens, etc.
SPECIFICATION
-Connection / duct diameter: 200mm
-Capacity:
minimum: 690 m3 / h,
maximum: 910 m3 / h
-Power:
minimum: 90W
maximum: 102W
3 speed version
The silent operation of the fan is ensured by the use of an innovative solution in the "Silent-S & P" technology - ie aerodynamic interior geometry, engine anti-vibration mountings, and an integrated set of internal silencers that ensure low noise and vibration levels.
Fans are recommended as an element of ventilation systems for various commercial and industrial facilities with high requirements regarding the noise level, i.e. libraries, conference rooms, educational institutions, kindergartens, etc.
SPECIFICATION
-Connection / duct diameter: 200mm
-Capacity:
minimum: 690 m3 / h,
maximum: 910 m3 / h
-Power:
minimum: 90W
maximum: 102W
3 speed version
Brand
Entity responsible for this product in the EU
S&P Sistemas de Ventilación S.L.U.More
ProducerS&P Sistemas de Ventilación S.L.U.Address:
C/Llevant nº4Postal code: 08150City: Parets del VallèsCountry: SpainE-mail: dpo@solerpalau.com
Responsible entityS&P Sistemas de Ventilación S.L.U.Address:
C/Llevant nº4Postal code: 08150City: Parets del VallèsCountry: SpainE-mail: dpo@solerpalau.com
Producer code
8413893873163
Power (W)
102
Loudness (dB)
20
Flange (mm)
200
Airflow regulation
yes
temperature regulation
no
Maximum fan performance (m3 / h)
880
Optimal performance (m3/h)
700
