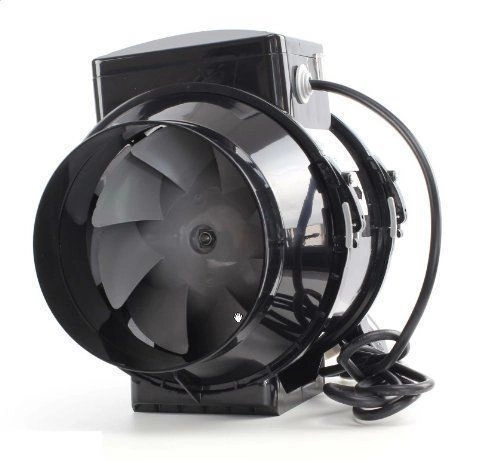

Black Orchid HYBRID-FLO 125 ST Inline Duct Fan — 125 mm / 350 m³/h
The Black Orchid HYBRID-FLO 125 ST is a high-performance inline duct fan designed for efficient and consistent air movement in residential, commercial and horticultural environments. With a 125 mm duct diameter and airflow capacity of up to 350 m³/h, it delivers strong ventilation and reliable pressure performance even when installed in longer duct systems or used with carbon filters.
This model features a hybrid-flow design combining axial and mixed-flow technologies, resulting in a powerful and stable air stream with reduced turbulence and noise. The integrated control module allows independent adjustment of temperature and fan speed, making it possible to maintain optimal environmental conditions with high precision and energy efficiency. The included temperature sensor is supplied with a long cable for flexible placement within the ventilated space.
The motor is equipped with an external rotor mounted on high-quality ball bearings, ensuring long service life and quiet operation. The housing is made from durable materials and supports both horizontal and vertical installation. The unit is supplied with a standard power cable and plug for quick setup without additional wiring.
Technical Specifications
• Model: HYBRID-FLO 125 ST
• Manufacturer: Black Orchid
• Duct diameter: 125 mm
• Airflow: up to 350 m³/h
• Control: temperature and speed (integrated)
• Temperature sensor cable length: approx. 4 m
• Motor type: external rotor, ball bearings
• Mounting orientation: horizontal or vertical
• Application: supply and exhaust ventilation
• Power supply: 220–240 V, 50/60 Hz
• Included: fan unit, control module, temperature sensor, power cable with plug
