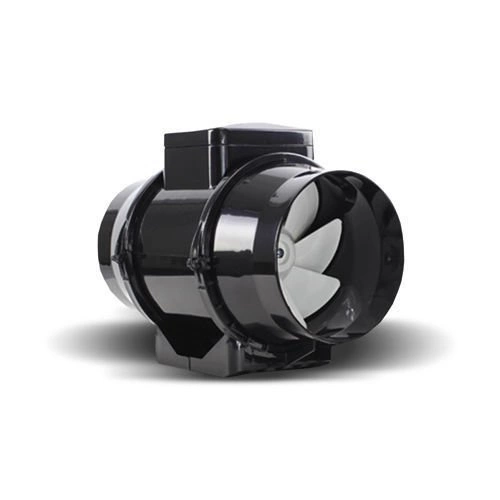

• Fan Mixed-Flo 100 P 100mm / 187 m3/h

Fan Mixed-Flo 100 P 100mm / 187 m3/h

  • Powerful Black Orchid temperature-adjustable duct fan
Producer: Black Orchid
Flange (mm): 100 mm
67,42 €
/ piece
54,81 €
/ piece

It is cheaper in a set!

Price of a product sold separately:Set price
Prima Klima Ventilation Kit | Black Orchid 100mm / 240 m3/hPrima Klima Ventilation Kit | Black Orchid 100mm / 240 m3/h104,87 €101,25 €You save (3.45%)
MIXED-FLO fans are interesting because of the wide range of possibilities and high performance, the technology made provides a strong airflow and high air pressure. Fans are recommended as part of ventilation systems for various commercial and industrial facilities with high noise requirements, i.e. libraries, conference rooms, educational institutions, kindergartens, etc.

The Black Orchid MIXED-FLO fan includes a built-in speed control

Specification





-Channel connection/diameter: 100mm (4")

-Bandwidth:

minimum: 145 m3/h,

maximum: 187 m3/h

-Power:

minimum: 21W

maximum: 33W

-Voltage [V/50HZ]: 1-230

-Ampere [A]

min: 0.11

max: 0.21

-RPM rotations:

min: 2180

max: 2385

-Maximum operating temperature: 0 - 55 °C

-For supply and exhaust ventilation

-For ventilation of large and medium-sized rooms

-Low noise level min. 21 dBA max. 33 dBA

-Motor with external rotor on ball bearings with built-in overload protection

-High-quality plastic housing

-Speed control via speed controller

-For horizontal and vertical installation

-Security standard: IPX4

-Strong, robust and economical

-Vibration-free operation

-Includes euro connection cable

-Color: black

Gallery



Tech specs:
Maximum performance:
187 m3/h
power (W):
33
Flange (mm):
100 mm
Loudness (dB):
33
Airflow regulation:
yes
temperature regulation:
no
Real power consumption (W):
48
