• Vents-Group Electric Air Heater - 150mm - 1200W

Vents-Group Electric Air Heater - 150mm - 1200W

  • Electric air heater, vents-group, 150mm diameter
Producer: Vents-Group
Flange (mm): 150
84,71 €
/ piece
68,87 €
/ piece

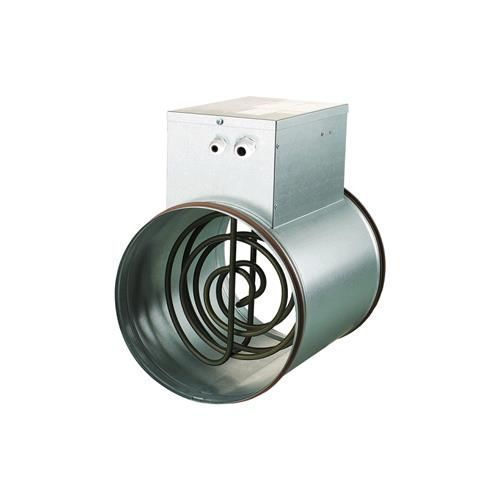

The air heater is designed to heat the air in the ventilation system. It is used in heating, air conditioning or ventilation systems.

The housing of the unit and the terminal box are made of galvanized steel, while the heating elements are made of stainless steel.

The product contains two thermostats, preventing overheating:
  • basic protection with automatic restart- when the temperature reaches 50ºC, the restart is switched on automatically. After cooling, the thermostat closes the control circuit
  • emergency protection with manual restart - when the temperature reaches 90ºC , the device activates the protection. The heater may restart after manually restarting.

It is possible to achieve an increase in power by installing heaters one by one, thanks to the fact that each typical dimension has a pair of power variants.

Specification





  • Air duct connection/diameter: 150mm (6")

  • Minimum air capacity:120 m3/h

  • Power:1200W

  • Voltage: 230V /50Hz

  • Current consumption:5.2 A

  • Weight:2.1kg

  • Number of phases: 1

Gallery

VENTS - DUCT AIR HEATER - Ø 100 - 600W


Tech specs:
power (W):
1200
Flange (mm):
150
