Vents-group TTUN PRO 250mm fan with power and temperature control 1400m3/h

  • Powerful duct fan with connection diameter of 250mm, the fan has multi-level speed control depending on the set temperature
Producer: Vents-Group
Flange (mm): 250 mm
232,21 €
/ piece
188,79 €
/ piece
Vents-GROUP Axial duct fans from the TTUN series are used in supply and exhaust ventilation systems. Thanks to the use of abs plastic housing, fans do not corrode, an additional advantage of these fans is fully adjustable power, which depends on the set temperature. The fans are suitable for air transport up to 60°C.

Specification





Channel connection/diameter: 250mm (10")

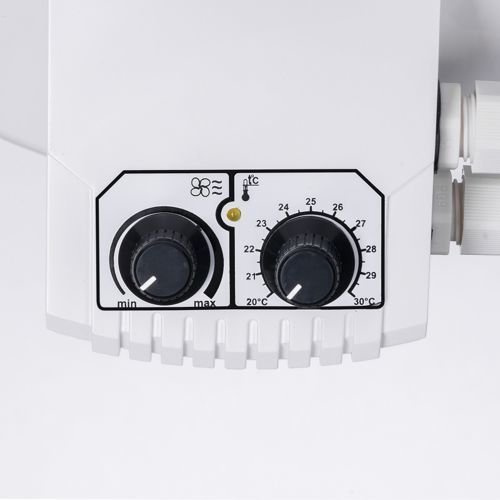

The fan has full power and temperature control

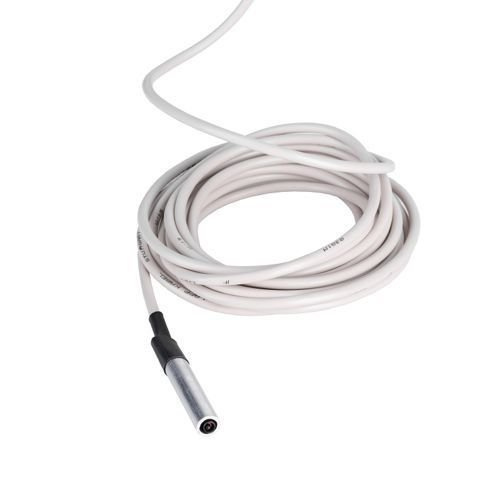

The fan has a temperature sensor on a cable length of 4m

Temperature control range: 20-30 degrees

Bandwidth

min: 950 m3/h

max: 1400 m3/h

Rpm

min: 1915

max: 2580

Power

max: 177 at

Noise

min: 45 dB

max: 52 dB

Operating temperature max:60°C

Free class: IPX4

Gallery



Tech specs:
power (W):
177
Loudness (dB):
52
Flange (mm):
250 mm
Airflow regulation:
yes
temperature regulation:
yes
Maximum performance:
1400 m3/h
