Vents-group TTUN 150mm fan with power and temperature control 520m3/h

  • Powerful duct fan with connection diameter of 150mm, the fan has multi-level rotation control depending on the set temperature
Producer: Vents-Group
Flange (mm): 150 mm
139,01 €
/ piece
113,02 €
/ piece

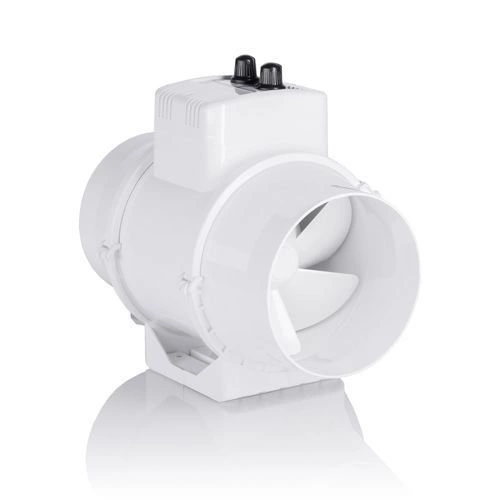

Vents-GROUP Axial duct fans from the TTUN series are used in supply and exhaust ventilation systems. Thanks to the use of abs plastic housing, fans do not corrode, an additional advantage of these fans is fully adjustable power, which depends on the set temperature. The fans are suitable for air transport up to 60°C.

Specification





Channel connection/diameter: 150mm (6")

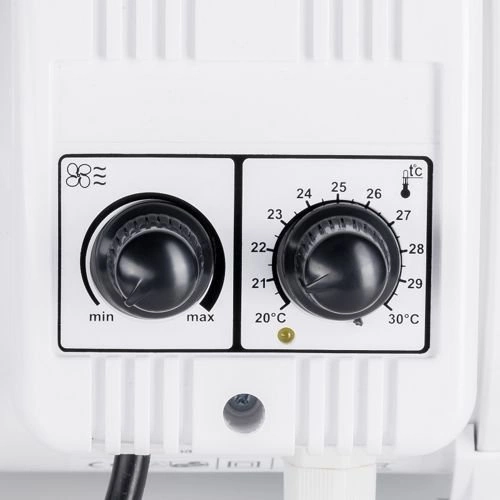

The fan has full power and temperature control

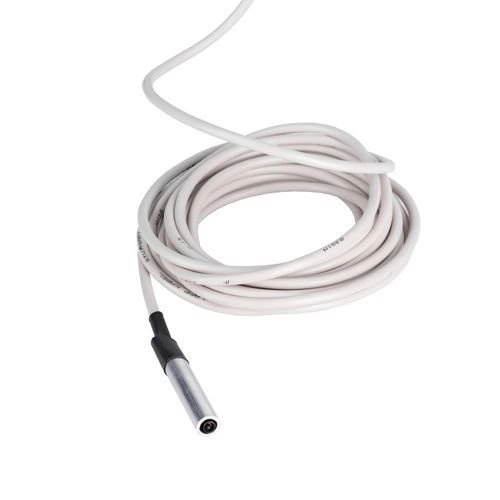

The fan has a temperature sensor on a cable length of 4m

Temperature control range: 20-30 degrees

Bandwidth

min: 405 m3/h

max: 520 m3/h

Rpm

min: 1680

max: 2460

Power

min: 30 at

max: 60 in

Noise

min: 33 dB

max: 44 dB

Operating temperature max:60°C

Free class: IPX4

Gallery



Tech specs:
power (W):
60
Loudness (dB):
44
Flange (mm):
150 mm
Airflow regulation:
yes
temperature regulation:
yes
Maximum performance:
520 m3/h
Real power consumption (W):
62
