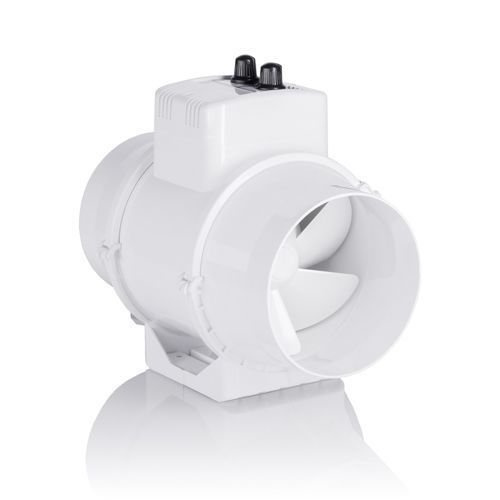

Vents-group TTUN 125mm fan with power and temperature control 280m3/h

  • Powerful duct fan with 125mm connection diameter, the fan has multi-level rotation control according to the set temperature.
Producer: Vents-Group
Flange (mm): 125
96,80 €
/ piece
78,70 €
/ piece
Vents-GROUP Axial duct fans from the TTUN series are used in supply and exhaust ventilation systems. Thanks to the use of abs plastic housing, fans do not corrode, an additional advantage of these fans is fully adjustable power, which depends on the set temperature. The fans are suitable for air transport up to 60°C.

Specification





Connection/diameter: 125mm (5")

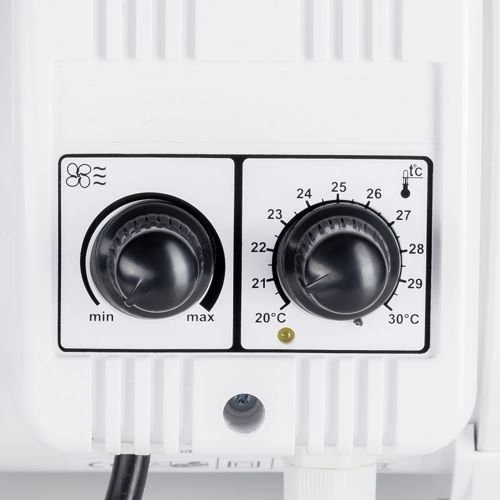

The fan has full power and temperature control

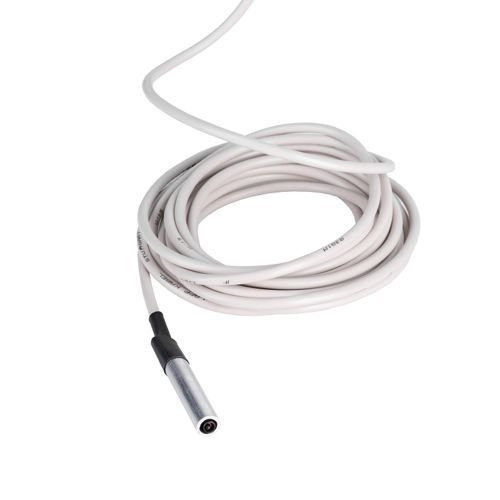

The fan has a temperature sensor on a cable length of 4m

Temperature control range: 20-30 degrees

Bandwidth

min: 220 m3/h

max: 280 m3/h

Power

min: 23 in

max: 37 in

Noise

min: 33 dB

max: 44 dB

Operating temperature max:60°C

Free class: IPX4

Gallery



Tech specs:
Maximum fan performance (m3 / h):
280
power (W):
37
Loudness (dB):
44
Flange (mm):
125
Airflow regulation:
yes
temperature regulation:
yes
Real power consumption (W):
48
