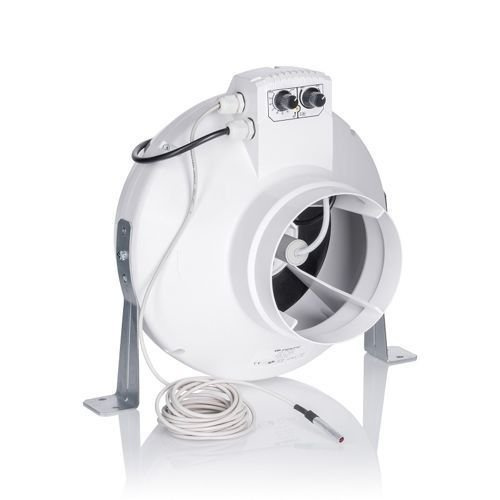

Vents-GROUP Axial duct fans from the TTUN series are used in supply and exhaust ventilation systems. Thanks to the use of abs plastic housing, fans do not corrode, an additional advantage of these fans is fully adjustable power, which depends on the set temperature. The fans are suitable for air transport up to 60°C.
Specification
|
Channel connection/diameter: 250mm (10") The fan has full power control In addition, the fan has a temperature sensor on a cable length of 3m This product is characterized by a high working culture while maintaining optimal parameters. Bandwidth max: 1080 m3/h Rpm max: 2090 Power max: 173 in Noise min: 37 dB max: 50 dB Operating temperature max:60°C Free class: IPX4 |
Gallery
Tech specs:
| power (W): | 173 |
| Loudness (dB): | 50 |
| Flange (mm): | 250 |
| Airflow regulation: | yes |
| temperature regulation: | yes |
| Maximum fan performance (m3 / h): | 1080 |
| Real power consumption (W): | 175 |
